Ready to transform your Test & Measurement Toolkit?

At IBC 2024 we demonstrated our latest test and measurement solutions suitable for all broadcast and media applications, whether on-set, studio production, post-production, broadcast QC, or for in-house video technology manufacturing facilities.

Advanced Test and Measurement technology for your broadcast and media application.

NEW! - LPX500 Quad-input Waveform Monitor

The LPX500 Hybrid IP/SDI waveform monitor is the first in a powerful new family of video analysis and generation instruments, encompassing next generation technology from the renowned Leader and PHABRIX Test and Measurement brands. The LPX500 offers a bank of four autonomous analyzers, enabling the simultaneous display of four 4K SDI or IP video source inputs.

On-set Production

Our instruments allow on-set production staff to have the same UHD and HDR test and measurement tools as the colourist in the post-production grading suite, allowing cost-effective delivery of unrivalled programming.

HD/SDR Production

Advanced 2K/3G/HD/SD signal generation, analysis and monitoring for faster compliance testing and fault diagnosis of video and audio.

Rx Series - Advanced rasterizers for up to 4 channels of 2K/3G/HD/SD signal generation, analysis and monitoring, with Physical Layer Analysis

Post Production

Creative visualization, analysis and high quality test and measurement monitoring tools.

LV7600W and LV5600W - Rasterizer and waveform monitor with a host of tools ideal for advanced Post Production including simultaneous HDR / SDR 2K/3G/HD-SDI Analysis

Hybrid IP/SDI

We are actively developing both handheld as well as rackmount IP enabled Test and Measurement equipment that supports both ST 2022-6, ST 2022-7 as well as ST 2110 video, audio and ANC IP flows.

EUHDTV

If you are working with Extended Reality (xR), fixed installation LED walls and Graphics Card applications, QxL can provide support for Analysis and Generation of UHD/4K YCbCr/RGB 444 formats in the range 47.95P – 60P.

QxL - compact, feature-rich 25G IP ST 2110 rasterizer

Remote Production

Our instruments offer various methods to enable you to establish a remote connection for analysis and monitoring, depending on your requirements.

Cloud Monitoring

Join us to discuss and take a closer look at our latest developments in Cloud Monitoring.

Broadcast QC

Test and Measurement tools to ensure broadcasters manage daily quality control, and can respond to any infrastructure faults with ease.

QxL - Compact, feature-rich 25G IP ST 2110 rasterizer

Reference Sources

For broadcasters that require both SDI & IP video and audio synchronization solutions, we have a comprehensive range of Sync
Pulse Generators.

Manufacturing, R&D & Engineering

Ensuring R&D and Manufacturing have the exacting tools available to them during product development testing and ongoing manufacturing compliance testing.

Handheld Instruments

Designed for commissioning, fault-finding and compliance testing, our handheld instruments are equally at home in an OB, studio facility, in remote locations with remote monitoring, or in a manufacturing and test environment.

Quad-input Waveform Monitor

Introducing the LPX500

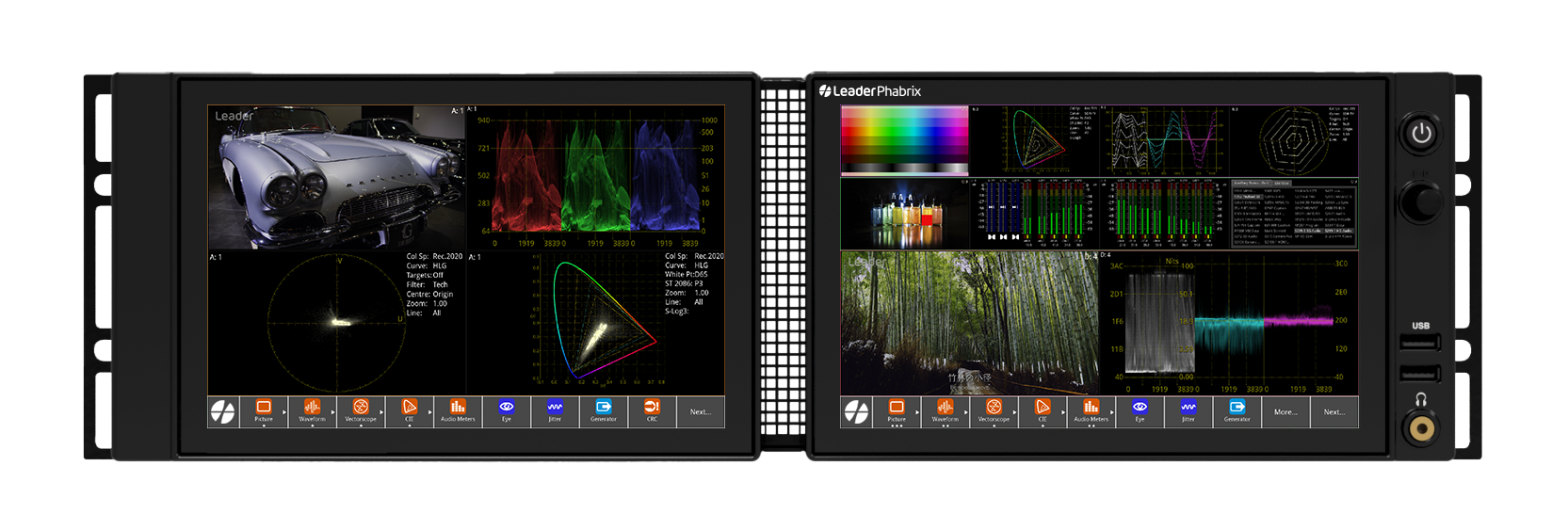

A second, compact screen unit can now optionally extend the unit’s local display capabilities, allowing you to control the unit from either physical screen. The second screen is also touch-enabled and supports the same gestures as the primary screen on the main unit. Connection to the second display is over a dedicated USB-C connector. Further remote screen output combinations are also available to output either screen, from either the DisplayPort or SDI Mon BNC display outputs. In addition, dual built-in VNC clients considerably improve the performance of the remote connection to either display over noVNC.

Following the innovative app style interface of PHABRIX instruments, the LPX500 hides the complexity of modern SDI and IP systems providing an uncluttered view of critical information. The enhanced layouts designed for the LPX500 not only extend the available screen real estate but now feature swipe gestures to navigate left or right through configured layouts and precise tap, hold and slide for instrument placement. Multiple screen layouts provide a huge canvas of extended screen real estate enabling you to move smoothly between instrument layouts, optimizing the viewing and touch experience on the unit.

LPX500

Launched at IBC 2024 the LPX500 Hybrid IP/SDI waveform monitor is the first in a powerful new family of video analysis and generation instruments, encompassing next generation technology from the renowned Leader and PHABRIX Test and Measurement brands. The LPX500 offers a bank of four autonomous analyzers, enabling the simultaneous display of four 4K SDI or IP video source inputs.

LV5600W

The ZEN-W Series, comprised of the LV5600W waveform monitor and LV7600W rasterizer, is designed to satisfy the most demanding broadcast operations and production T&M environments. Now with the growth of IP infrastructures and new remote production working practices, a comprehensive set of features ensures the ZEN-W Series provides all the support needed to monitor 4K/UHD/2K/HD/SD-SDI as well as video-over-IP signals seamlessly in a true-hybrid operating environment.

LT4670

The LT4670 is a next generation Hybrid IP/SDI Reference and Test Signal Generator, with unmatched capability and redundancy, featuring dual PTP engines, dual hot-swappable power supplies and fans and a full suite of analog, SDI, and 25G IP signals to help engineers build and operate any SDI, IP or hybrid system.

Sx TAG

Sx TAG with its SFP, SDI and analog I/O offers incredible versatility in a handheld device. It is ideal for IP, 3G/HD/SD-SDI, optical SDI, HDMI and Analog test & measurement as well as AES eye analysis, for applications demanding true mobility and ease of use.
