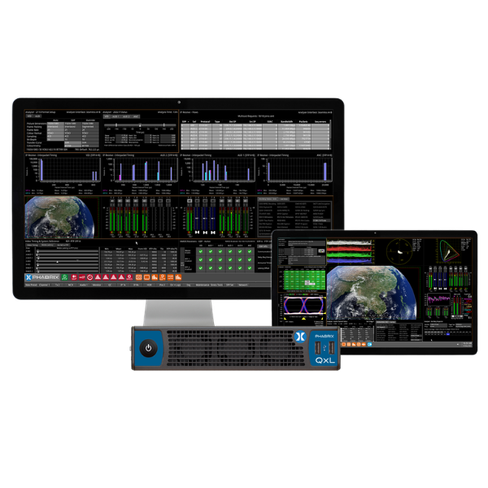

PHABRIX QxL Rasterizer

The QxL rasterizer is designed to meet the increasing demands of monitoring and testing in SDI/IP hybrid environments.

Ex-Rental units are available with:

• Realtime UHD IP workflows on 25G networks with video payloads up to 21 Gbps, with support for ST 2110 and 2022-6 on generic 10G/25G SFP28 interfaces
• 12G-SDI Physical Layer Analysis
• Fully flexible user-defined instrument layout. Display up to 16 instruments on a single display.
• Picture view, waveform monitor, vectorscope, audio metering, Dolby ® E/D/D+/ED2 format detection, ANC status and payload, closed captions and Ancillary Time Code, loudness monitoring, remote operator GUI access over noVNC and a full REST API
• Advanced HDR vizualisation and analysis toolset included
• Support for HD/2K, UHD/4K, SDR, HDR, SDI formats within ST 2110
• 10G/25G PCAP Tool
• 25G-IP/10G-SDI Audio & Video Generation and Analysis
• Extensive AMWA NMOS IS-04, IS-05 support and a suite of operator level IP flow health and PTP monitoring tools

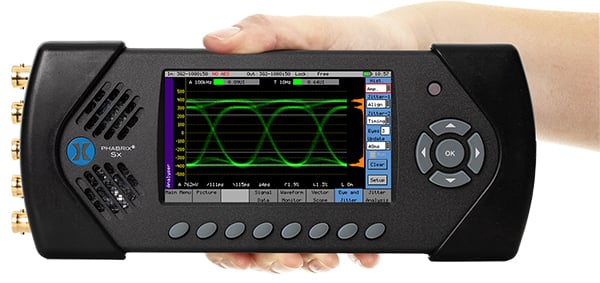

PHABRIX SxE

The SxE is a portable Generator, Analyser and Monitoring instrument for rapid fault diagnosis, SMPTE compliance monitoring and Physical Layer Analysis.

Ex-Rental units are available with:

• Advanced physical layer analysis (Eye & Jitter)
• RTE™ (Real-Time Eye) technology to instantly highlight SMPTE compliance issues like eye under/overshoot
• Extensive video and audio toolsets including a multi-format waveform, vectorscope
• SDI Data display + VANC/ANC Inspector
• Automatic Link Detection of Single Links of Multi-link 3G- and HD-based UHD formats
• Video status logging, and remote operation over Ethernet
• Protective carry bag

Leader LVB440

The LVB440 High Bit Rate IP Packet Monitor provides revolutionary monitoring and analysis capabilities for IP media traffic found in outside production, broadcast studios and master control centres allowing for quick troubleshooting and quality improvement.

The LVB440 supports ST 2110, and ST 2022-6 flows at dual 40 Gbps bitrate, and dual 60 Gbps with additional options. Streams from SD to 4K (UHD) can be monitored, with 8K monitoring configurations available. The LVB440 offers familiar visualization tools such as vectorscope, picture monitor, audio pairs, and waveform monitor allowing broadcast and production crews to easily manage real-time analysis and troubleshooting of IP-based network audio and video streams. Packet analysis of uncompressed video and audio is available with microsecond accuracy.

As standard, the LVB440 support (2) two concurrent user clients, which can be upgraded to a total of (8) eight with the addition of the LVB440-SER20 software licence and can view the analysis data in a standard web browser at the same time for simplified remote operation.
